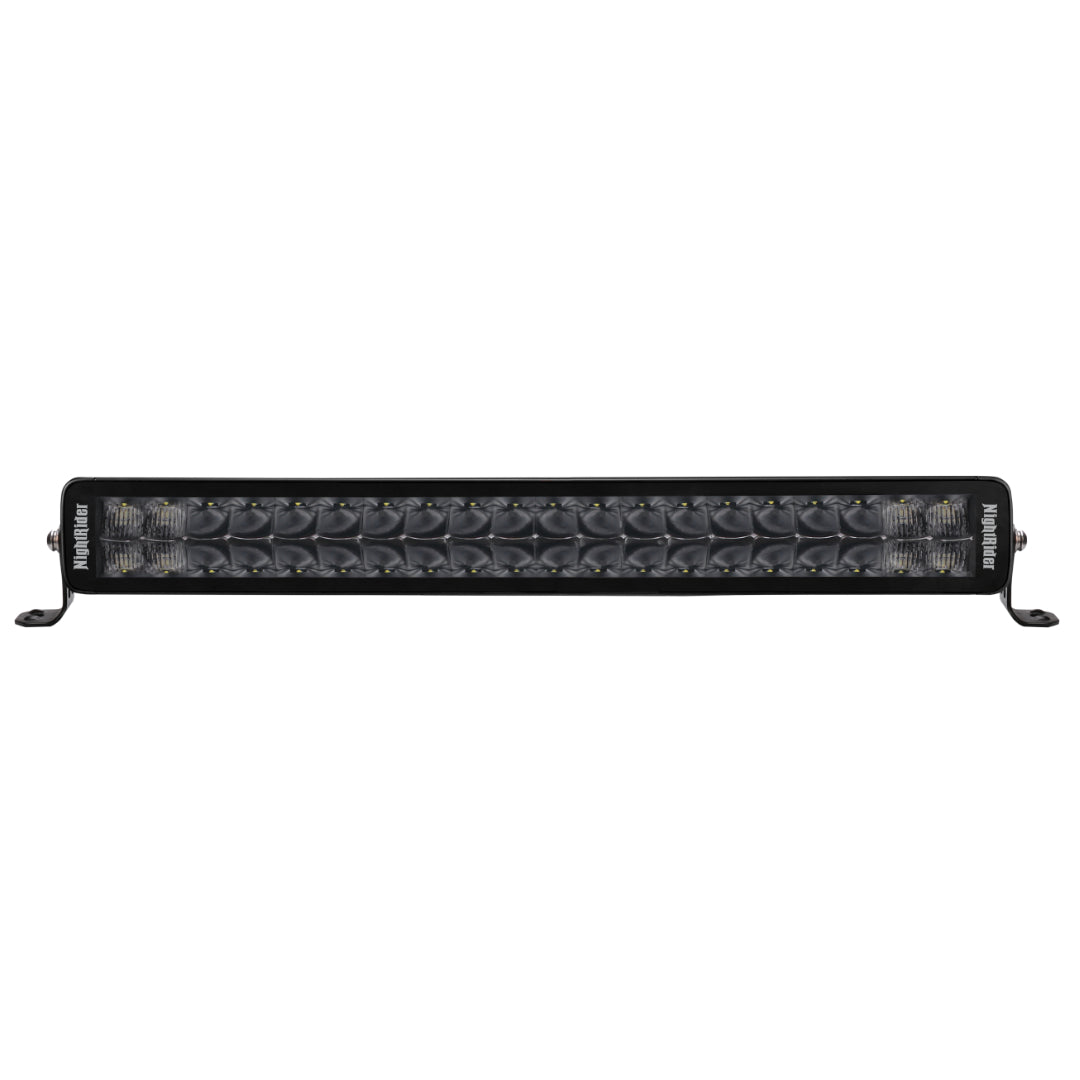

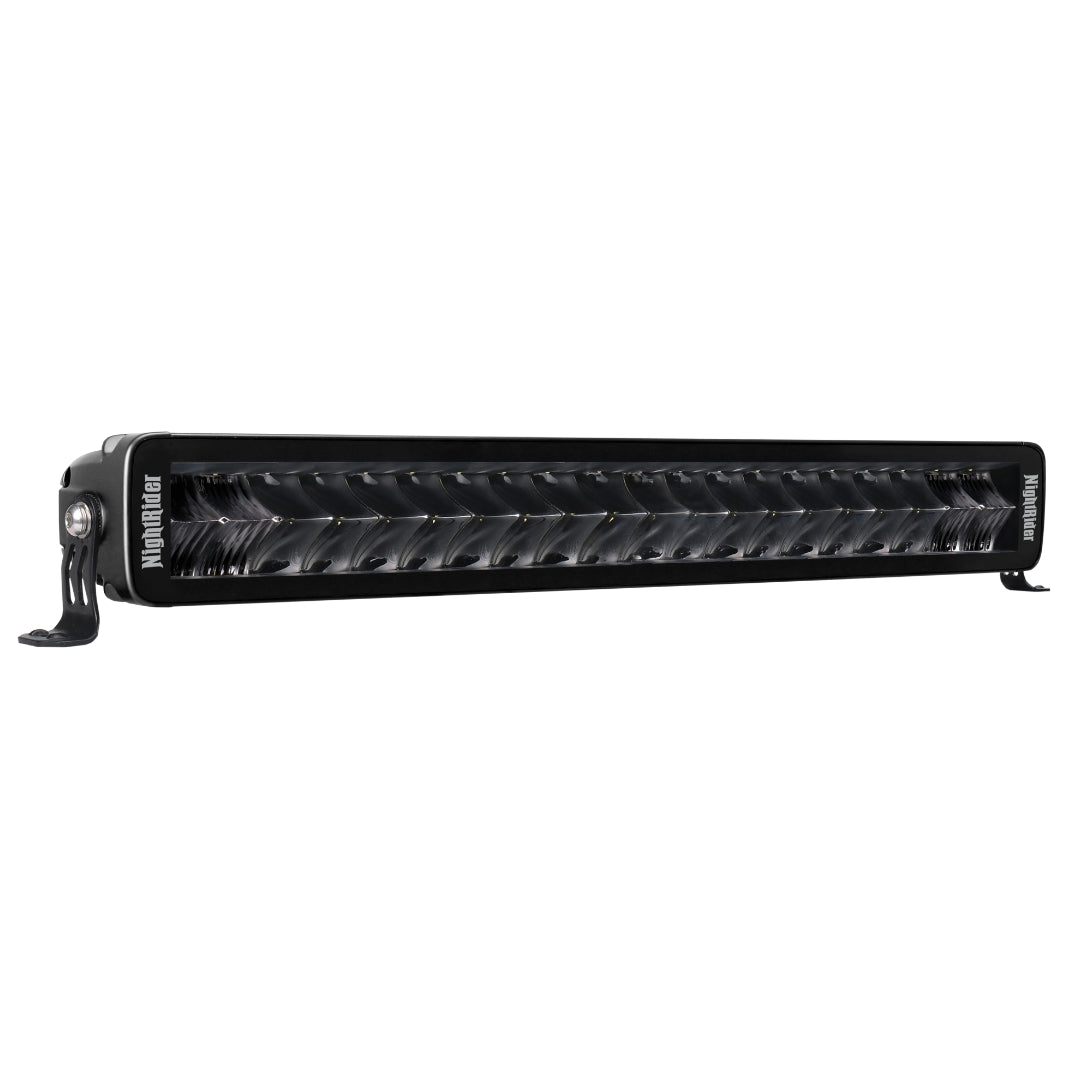

20" Jet Black Series Double Row High Power LED Light Bar - NJ20
|
NightRider LEDS – Jet Black Series – High Power |
|
|
Part # |
NJ20 |
|
Watts |
200W |
|
Lumens |
16,800lm |
|
IP Rating |
IP67 |
|
Beam |
Combo Flood and Spot Beam Pattern |
|
LED Chip Type |
5W OSRAM CSHP |
|
LEDS |
40 |
|
Colour Temperature |
5,700K (Daylight) |
|

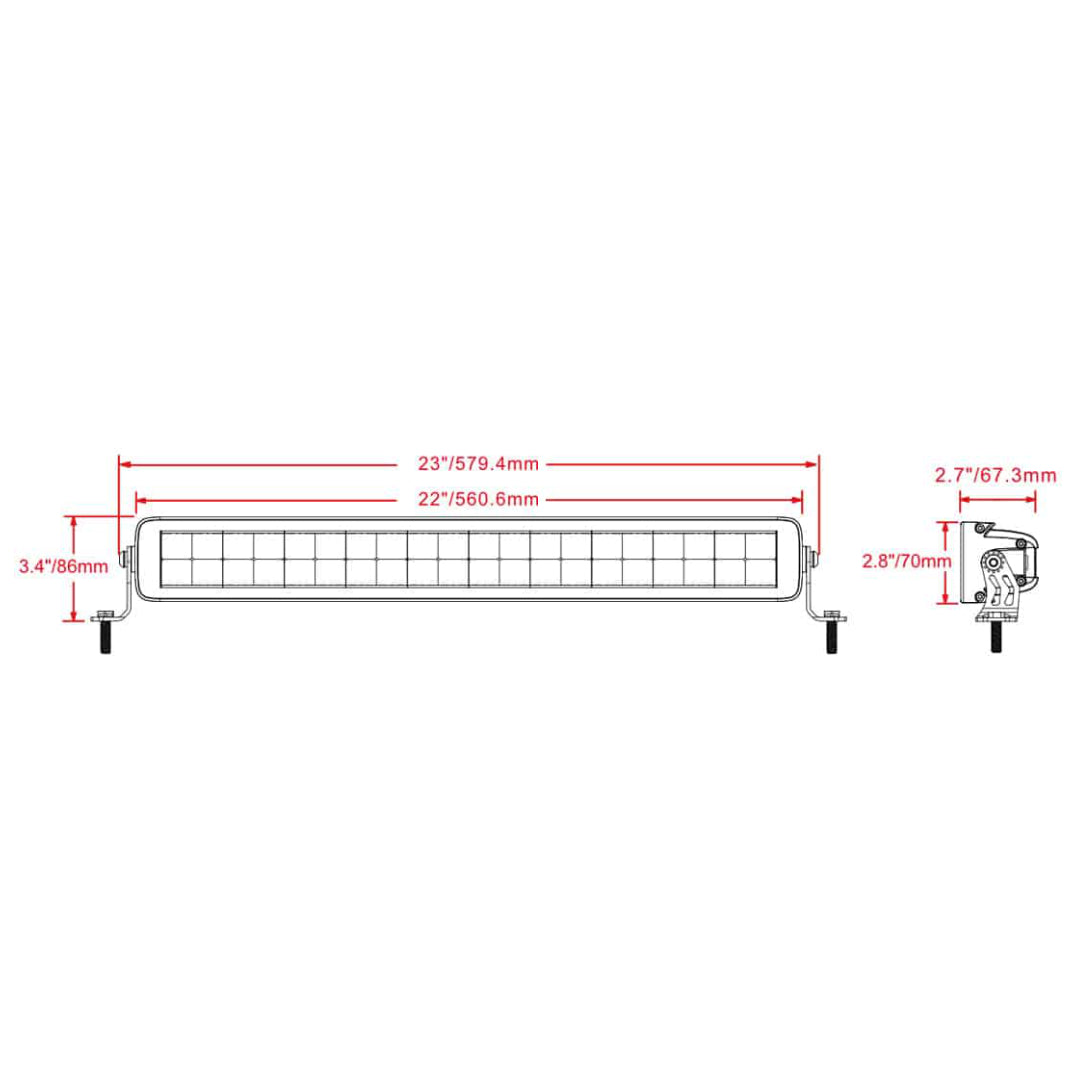

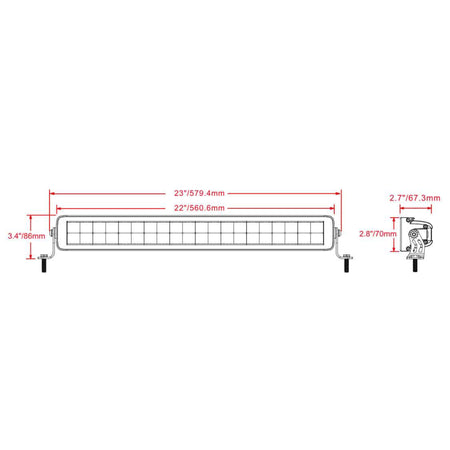

Dimensions |
67mm D x 561mm L x 70mm H |
|
Operating Voltage Range |
10-30V DC |
|
AMP Draw @ 12 V |
16.7A |
|
LED Life |
30,000 hrs + |
|
Lux @ 10M |
6,461lx |
|
The Jet Black Series features a sleek new edgeless design to reduce snow and ice build up as well as reduce wind resistance and noise. Hooded dark reflectors reduce glare and direct light exactly to where it’s needed. |
|
|
High Power Light Bars feature Internal Temperature Control System (TCS) for maximum light output |
|
|
Narrow Profile for More Mounting Options and Comes With 2 Sets of Mounting Brackets |
|
|

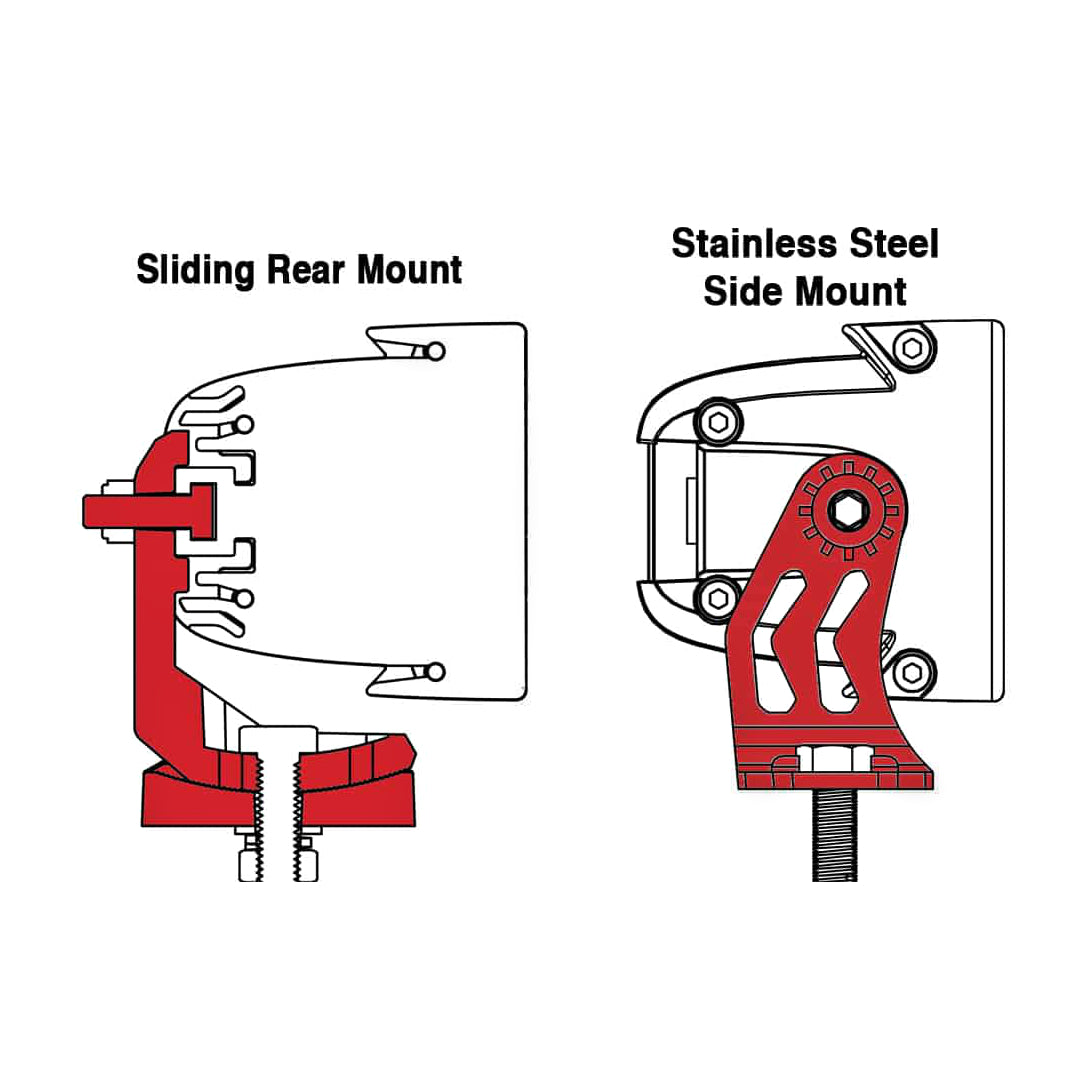

Includes Dual Mounting System: Black 304 Stainless Steel Side Brackets, Black Powder Coated Sliding Rear Brackets and Stainless Steel Hardware |
|
|

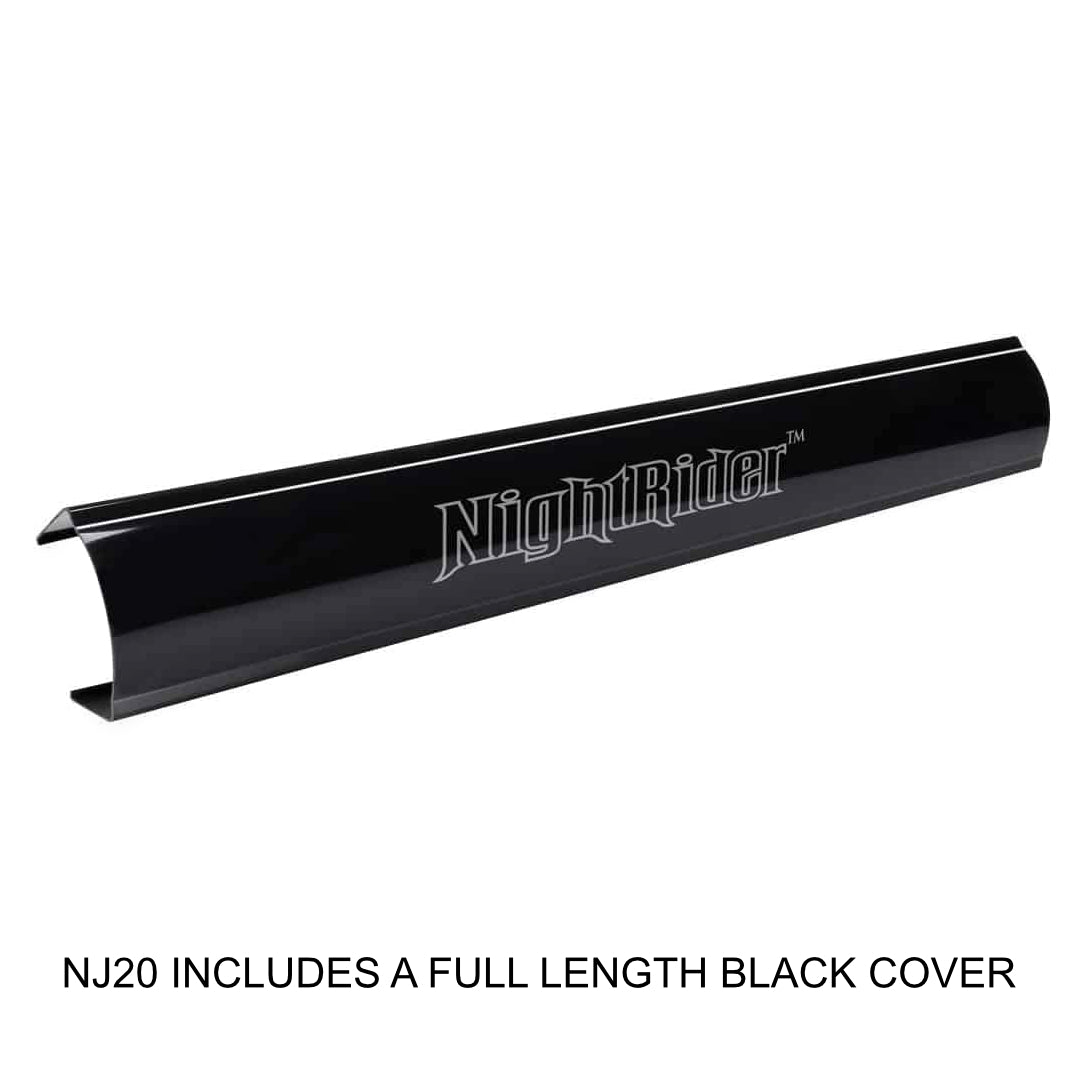

Includes Black Covers |
|
|
Includes Wiring Harness (Sealed Plug & Play Deutsch Plug Connector, Override Switch, 40 Amp Relay, 30 Amp Fuse, Fuse Holder, 20' of wire) |
|
|
Aluminum Casing with Breather Vent |
|
|
Polycarbonate Protective Lens |
|
|
1 Year Warranty |
|
|
30 Day Money Back Guarantee |
|
|
Light Covers Included: Black Light Covers Available to Purchase: Clear, Amber and Blue (not included) |
|
|
*Always check regional rules and regulations regarding the use of auxiliary driving lights for highway use. Northern Light Bars will not be accountable for improper mounting, aiming, wiring or regional restrictions. |
|
Customer Reviews
Finished installation. Had to make a couple of brackets to make it work on my 2023 F150. The harness was well made but the lighted switch provided was not required on my F150; I was able to trigger the relay with one on the provided auxiliary switches in the overhead panel.
I was hoping to use a signal from the truck's high beam circuit to trigger the relay but on the new Fords there is no signal at the headlight. I am hoping to figure out where to find a high beam signal at some point. Sounds like a useful harness for Northern Light Bars to develop!
I used the sliding rear mounts for my installation and they are easy to adjust. After a first use this morning I will have to tip the bar down one notch. The bar is certainly bright enough - makes a huge and noticeable difference - even with the Ford's quad-LED headlights on high beam! (But not so bright that the glare off road signs causes the automatic high beams to kick off. I was worried that might happen.)
21.5 Inch
Throws lots of light wicked double row
Can’t believe I was driving without a light bar can see so much more with this equipment on my truck
I must admit, for a 20” light….its bright. It seems to be brighter than 43” Rigid. Great price and quality
Has to be one of the best light bars I’ve bought in a long time. Super impressed with the quality. The brightness is unmatched. Well worth the wait for this US east coaster. Would highly recommend this product and northern lights for a smooth experience. Thank you !
Works great
