Street Legal Light Bars* |
|
|
NightRider LEDS – Jet Black Series – ECE/E-Mark Certified |
|
|
Part # |

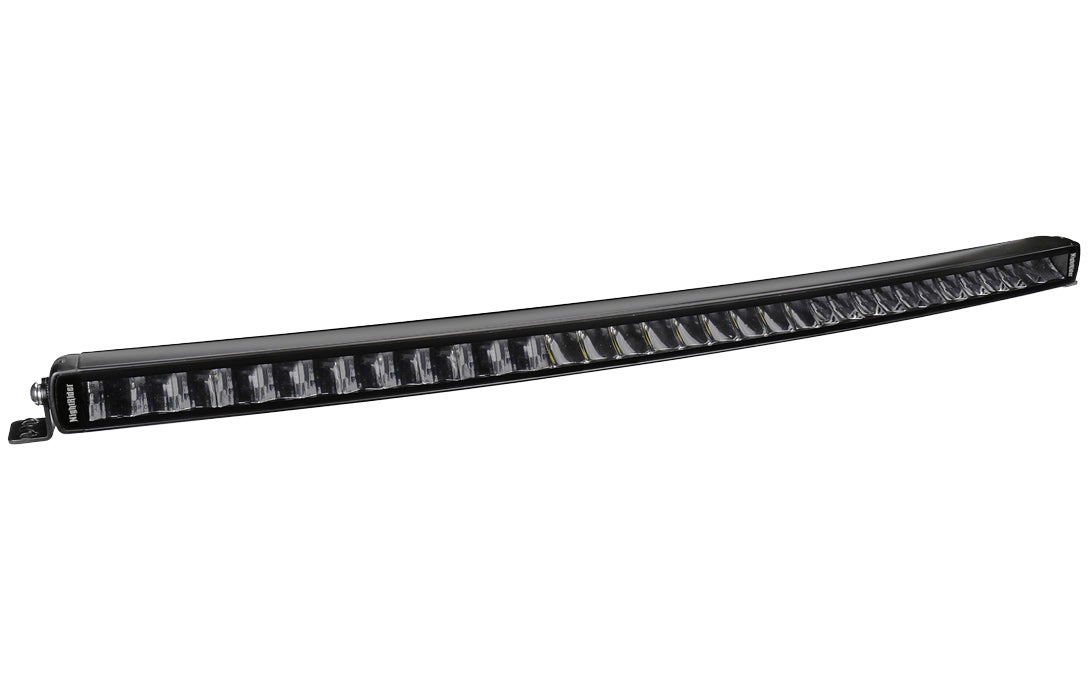

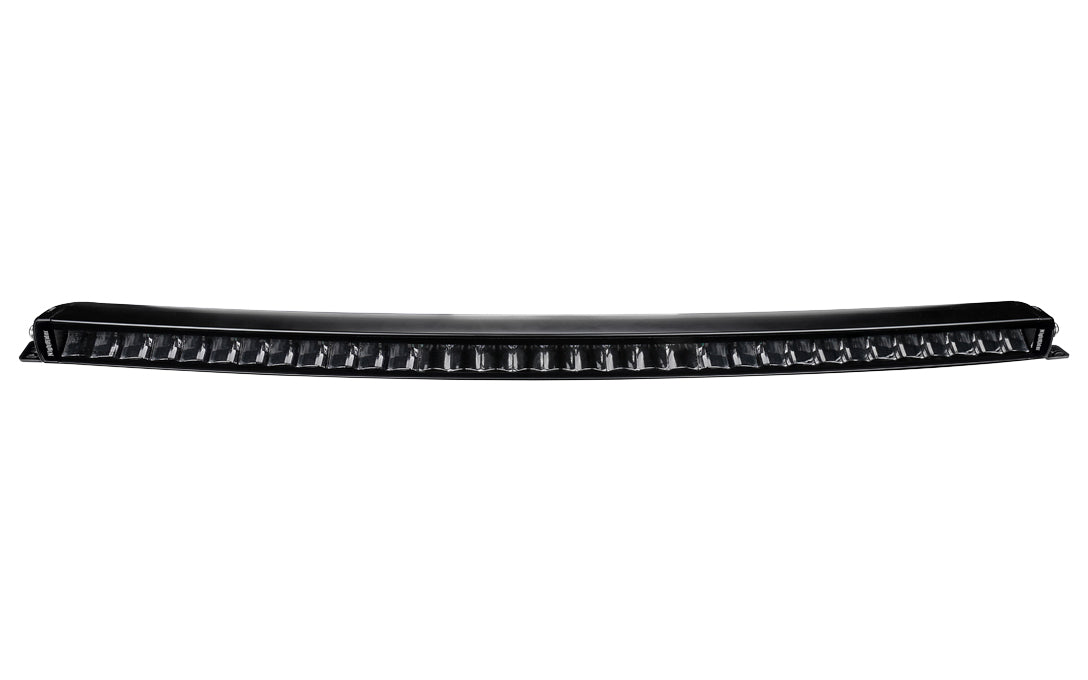

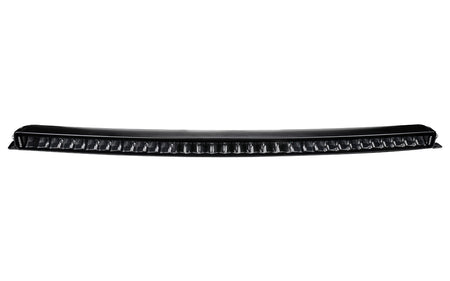

NJSCR32EM (Curved Light Bar) |
|
Watts |
Theoretical: 165W Actual: 78W (Wattage is throttled back to meet ECE/E-mark Certifications) |
|
Lumens |
13,860lm Raw/5,314lm Effective |
|
IP Rating |
IP67 |
|
Beam |
ECE Certified R112 Auxiliary Driving Beam Combo Flood and Spot Beam Pattern |
|
LED Chip Type |
5W OSRAM CSHP |
|
LEDS |
33 |
|
Colour Temperature |
5,700K (Daylight) |
|

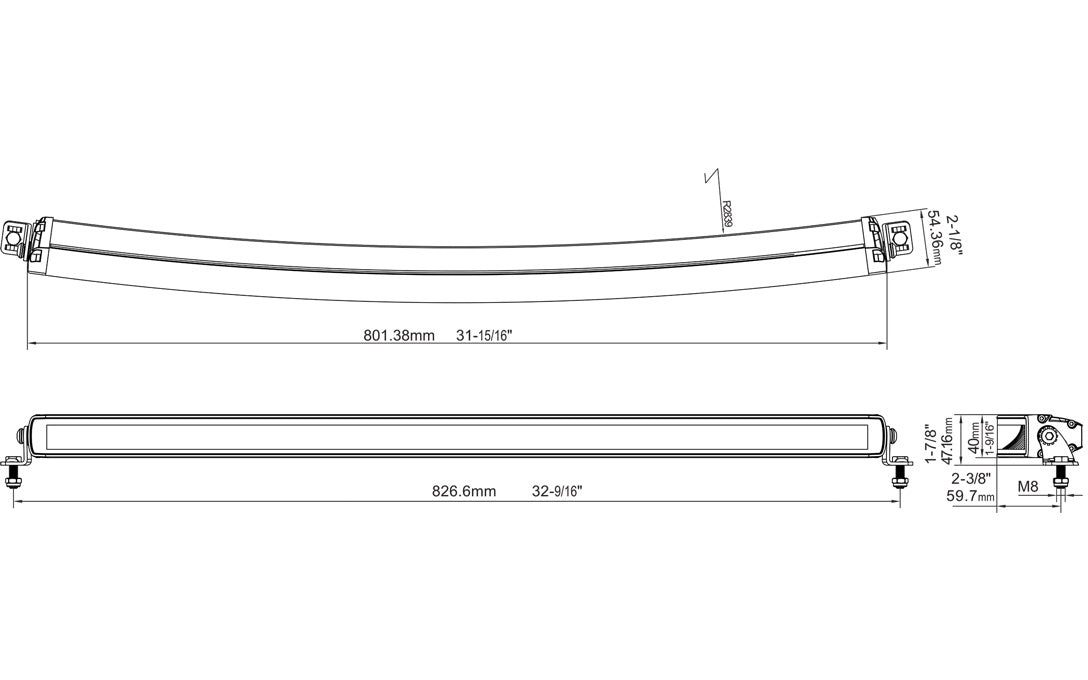

Dimensions |
60mm D x 801mm L x 47mm H |
|
Operating Voltage Range |
10-30V DC |
|
AMP Draw @ 12 V |
13.75A |
|
LED Life |
30,000 hrs + |
|
Lux @ 10M |
2,160lx |
|

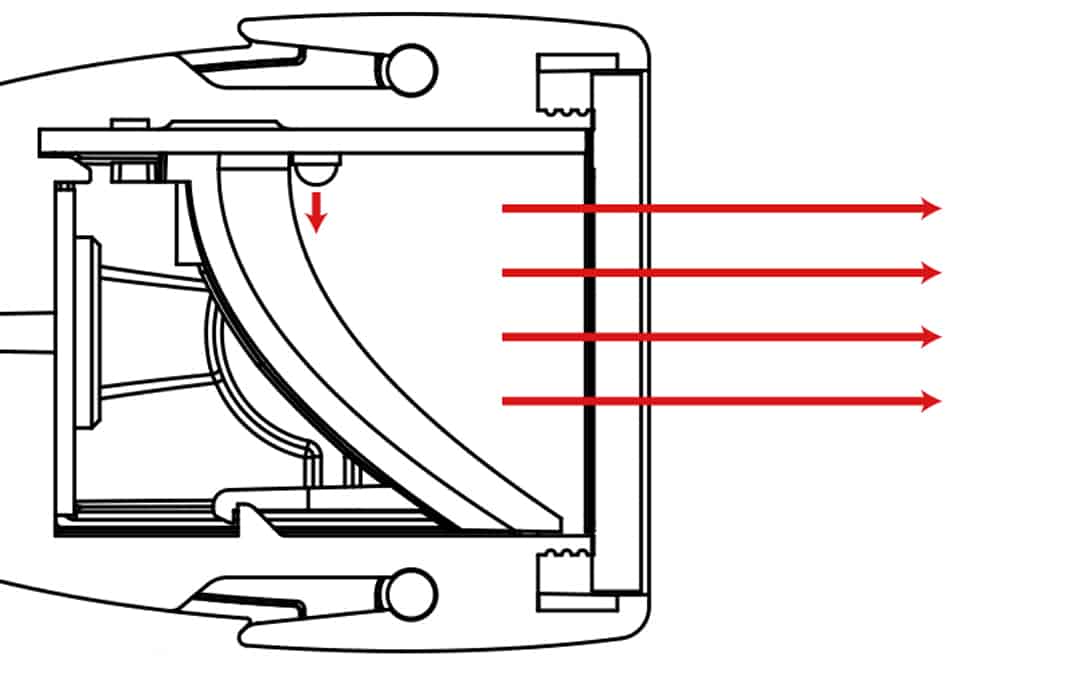

The Jet Black Series features a sleek new edgeless design to reduce snow and ice build up as well as reduce wind resistance and noise. Hooded dark reflectors reduce glare and direct light exactly to where it’s needed. |
|
|
Aluminum Casing with Breather Vent |
|
|
Narrow Profile for More Mounting Options and Comes With 2 Sets of Mounting Brackets |
|
|

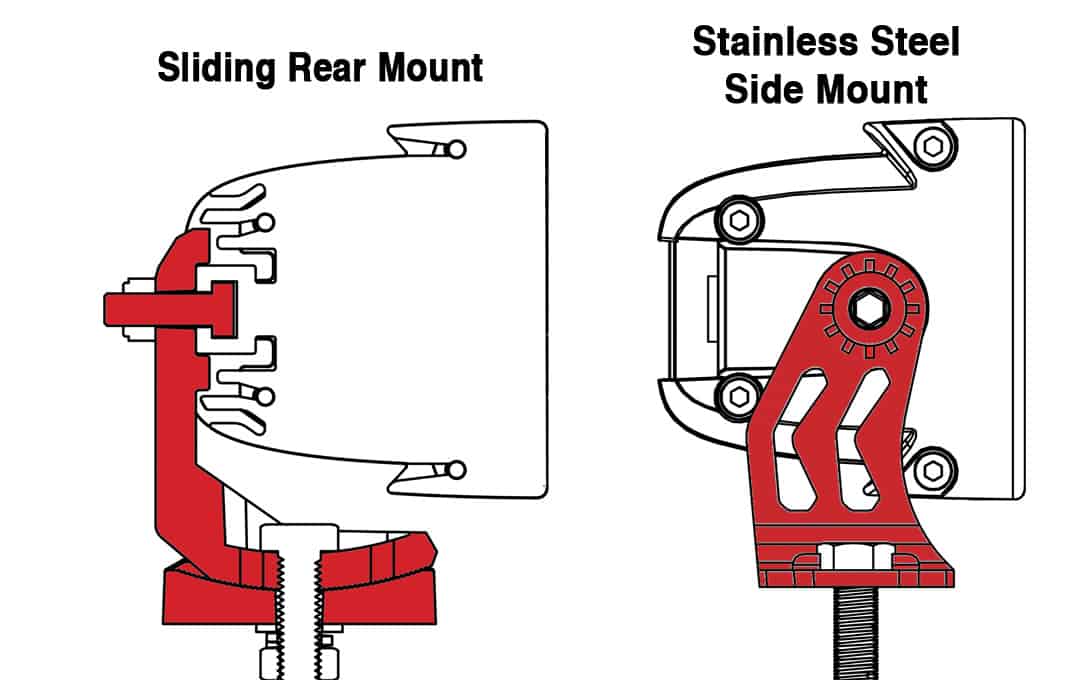

Includes Dual Mounting System: Black 304 Stainless Steel Side Brackets, Black Powder Coated Sliding Rear Brackets and Stainless Steel Hardware |
|
|
Polycarbonate Protective Lens |
|
|
Includes Wiring Harness (Sealed Plug & Play Deutsch Plug Connector, Override Switch, 40 Amp Relay, 30 Amp Fuse, Fuse Holder, 20' of wire) |
|
|
1 Year Warranty |
|
|
30 Day Money Back Guarantee |
|
|
Light Covers Available in Black, Clear, Amber and Blue (not included) |
|
|
*Always check regional rules and regulations regarding the use of auxiliary driving lights for highway use. Northern Light Bars will not be accountable for improper mounting, aiming, wiring or regional restrictions. |
|
