Heated Universal DOT/SAE Snow Plow Light - NRH-SPSHU
NightRider LEDS – SAE/DOT Street Legal Lights
SOLD INDIVIDUALLY
This light has everything you will need: Hi/Low beam, a modular turn signal light which can be fixed to either side or on top of the main light, DRL, and an edgeless, heated lens to keep the snow off.

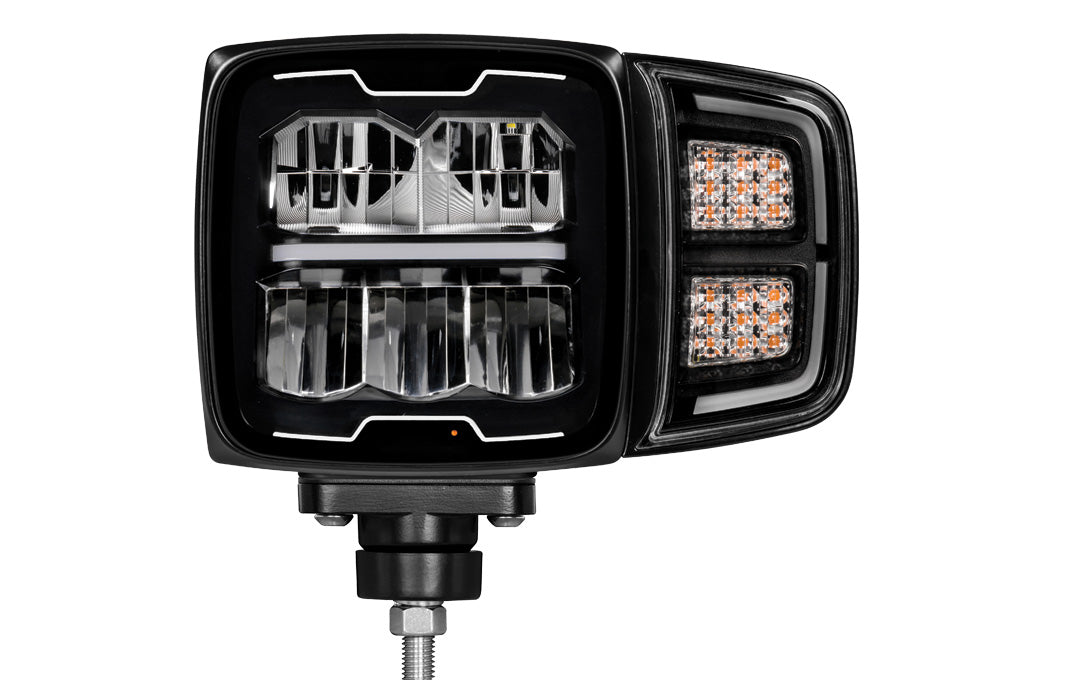

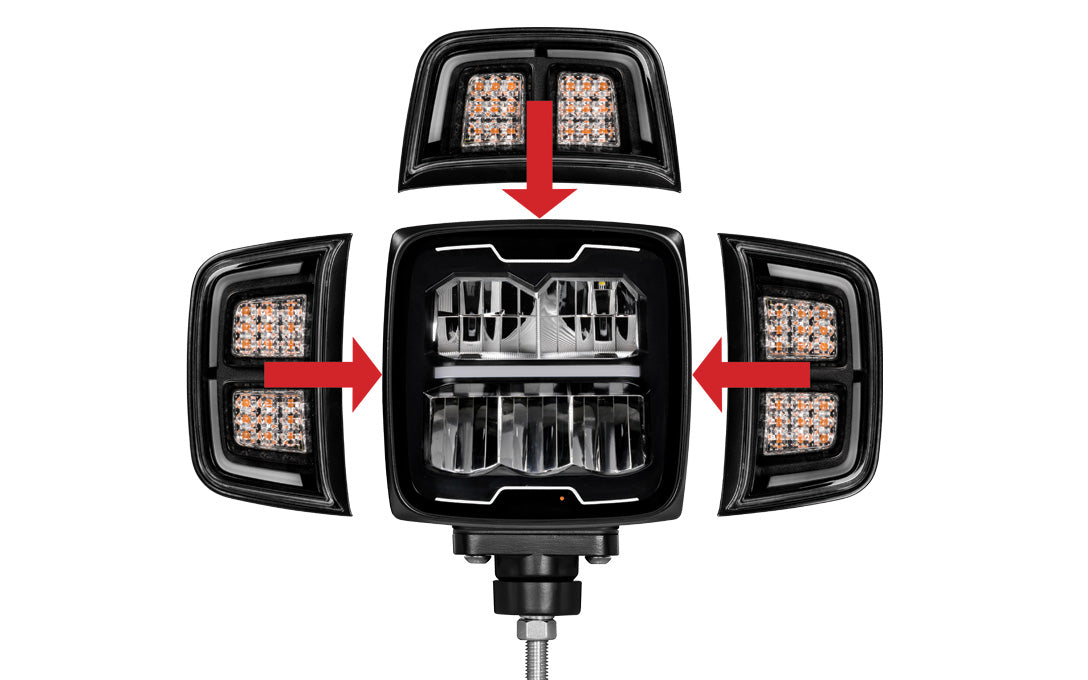

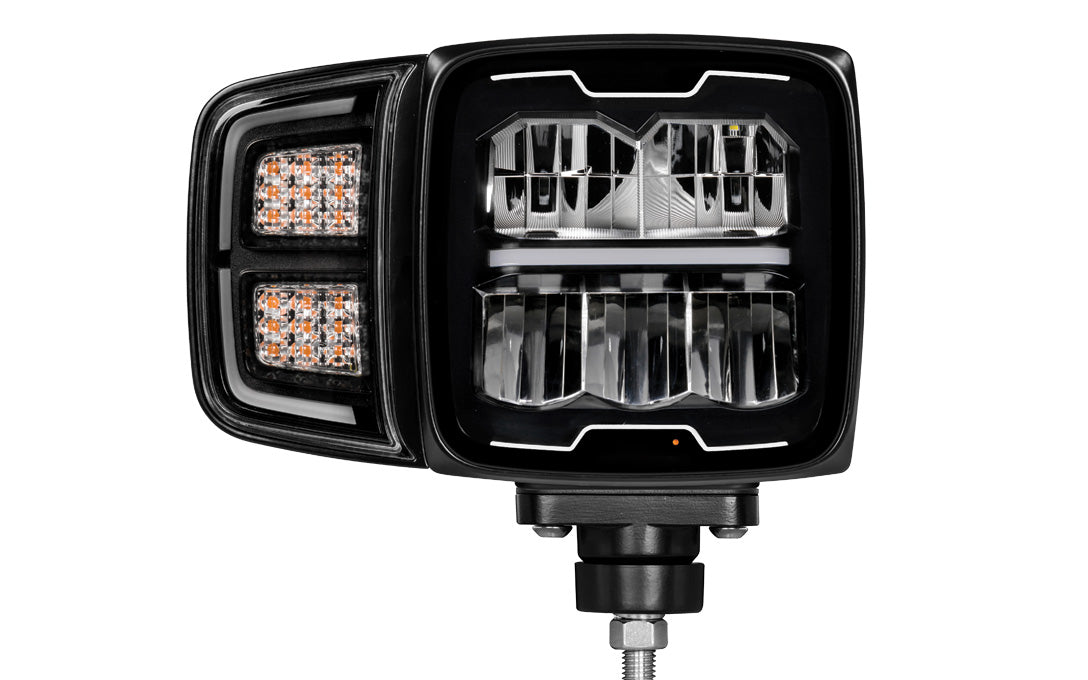

Adjustable signal light location: it can be attached to the right, left, or on top of the main light.

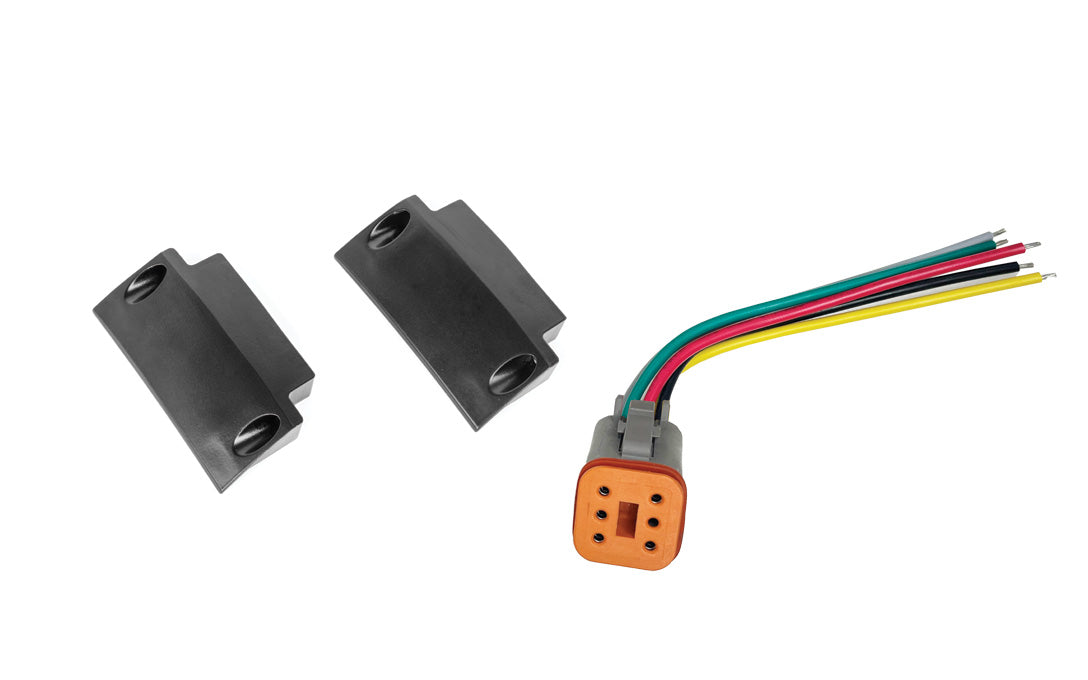

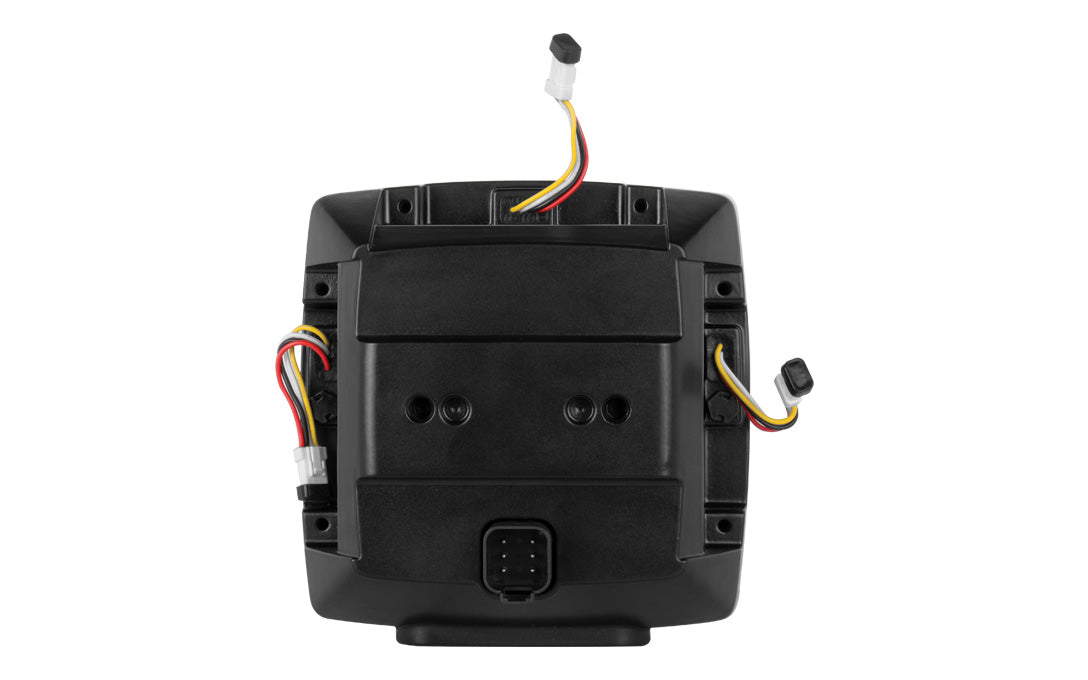

Light comes with two covers for the unused signal light spots, a mounting bracket and one length of pig tail wiring with a 6-pin Deutsch plug connecting into the back of the main light. The bracket allows for horizontal as well as vertical mounting.
The integrated Heated function reduces snow and ice buildup to ensure great visibility during dark winters. The Snow Plow Lights are Street Legal throughout North America*
Download Mounting and Wiring Instructions
| Part # | NRH-SPSHU |
| Watts | 25W Low Beam/42W High Beam |
| Lumens | High Beam: 3,000lm Low Beam: 2,400lm |
| IP Rating | IP67 |
| Beam | SAE/DOT Compliant: High Beam, Low Beam, Daytime Running Light and Signal Lights |
| LED Chip Type | High Beam: 10W CREE Low Beam: 15W OSRAM |
| LEDS | High Beam: 3 Low Beam: 2 |
| Colour Temperature | 5,700K (Daylight) |

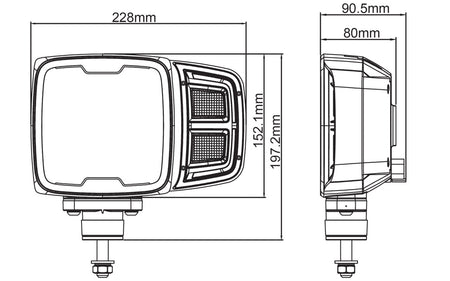

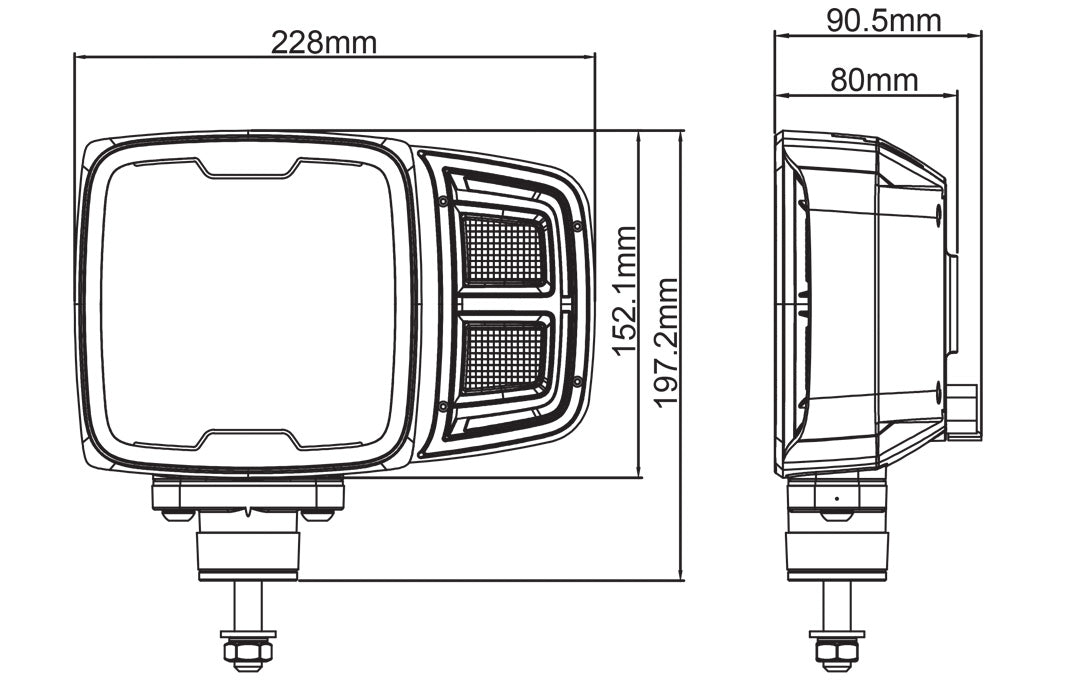

| Dimensions | 8.66" x 7.76" |
| Operating Voltage Range | 10-30V DC |
| AMP Draw @ 12 V | High Beam: 3.5A Low Beam: 2.1A |
| LED Life | 30,000 hrs + |
| Snow Plow Light with integreated High Beam/Low Beam and Signal Lights | |
| Snow Plow Light has an integrated heated function to melt snow and ice. Edgeless design also helps reduce snow and ice buildup. | |
| Comes with pig tail wiring with Deutsch style 6 pin connector. Each colour of wiring on pig tail has specific function (refer to Mounting and Wiring Instructions for more details) Green: Signal Light Black: Ground Yellow: Low Beam Red: High Beam Grey: Daytime Running Light |
|
| Aluminum Casing | |
| Includes Mounting Brackets | |
| Polycarbonate Protective Lens | |
| 1 Year Warranty | |
| 30 Day Money Back Guarantee | |
| *Always check regional rules and regulations regarding the use of auxiliary driving lights for highway use. Northern Light Bars will not be accountable for improper mounting, aiming, wiring or regional restrictions. | |
